Entry |
|
Name |
GM4;
N-Acetylneuraminyl-galactosylceramide;
Neu5Ac-alpha2->3Gal-beta1->1'Cer
|
Formula |
C36H63N2O16R
|

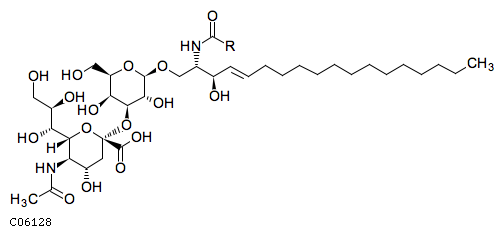

Structure |
|
Remark |
|
Comment |
Generic compound in reaction hierarchy
|
Reaction |
|
Pathway |
|
Enzyme |
|
Brite |
Lipids [BR:br08002]
SP Sphingolipids
SP06 Acidic glycosphingolipids
SP0601 Gangliosides
G00317 Neu5Ac-alpha2->3Gal-beta1->1'Cer (GM4)
|
Other DBs |
|
LinkDB |
|
KCF data |
ATOM 55
1 O2a O 18.1790 -20.3279
2 C1b C 19.3900 -21.0265
3 C1c C 20.5542 -20.2813
4 C1c C 21.7652 -20.9799
5 N1b N 20.5542 -18.9307
6 C2b C 22.9760 -20.2813
7 O1a O 21.8117 -22.4237
8 C5a C 21.7186 -18.1855
9 C2b C 24.1869 -20.9799
10 O5a O 21.7186 -16.8350
11 R R 22.9294 -18.8841
12 C1b C 25.3978 -20.2348
13 C1b C 26.6087 -20.9334
14 C1b C 27.8195 -20.2348
15 C1b C 29.0305 -20.8868
16 C1b C 30.2413 -20.1882
17 C1b C 31.4522 -20.8868
18 C1b C 32.6631 -20.1882
19 C1b C 33.8740 -20.8402
20 C1b C 35.0848 -20.1416
21 C1b C 36.2958 -20.8402
22 C1b C 37.5066 -20.1416
23 C1b C 38.7175 -20.7936
24 C1a C 39.9284 -20.0951
25 O2a O 15.7107 -24.4263
26 C1y C 15.7573 -23.0291
27 C1y C 16.9682 -22.3770
28 C1y C 14.5464 -22.3305
29 C1y C 16.9682 -21.0265
30 O1a O 17.9462 -22.8894
31 C1y C 14.5464 -20.9334
32 O1a O 13.3355 -23.3556
33 O2x O 15.8038 -20.2813
34 C1b C 13.3821 -20.2348
35 O1a O 12.2178 -20.9334
36 C1z C 14.0341 -25.3577
37 O2x O 12.8698 -24.6591
38 C1x C 14.0341 -26.7549
39 C6a C 15.2450 -25.9632
40 C1y C 11.6589 -25.3577
41 C1y C 12.8698 -27.4535
42 O6a O 16.4093 -25.2646
43 O6a O 15.2450 -27.4069
44 C1y C 11.6589 -26.7549
45 O1a O 12.8698 -28.8040
46 C1c C 10.4481 -24.6125
47 C1c C 10.4481 -23.2153
48 C1b C 9.1906 -22.4703
49 O1a O 9.1906 -21.0265
50 O1a O 9.1906 -25.3577
51 O1a O 11.6589 -22.4703
52 N1b N 10.4481 -27.4535
53 C5a C 10.4481 -28.8973
54 C1a C 9.1906 -29.5958
55 O5a O 11.6589 -29.5958
BOND 56
1 1 2 1
2 2 3 1
3 3 4 1
4 3 5 1 #Down
5 4 6 1
6 4 7 1 #Up
7 5 8 1
8 6 9 2
9 8 10 2
10 8 11 1
11 9 12 1
12 12 13 1
13 13 14 1
14 14 15 1
15 15 16 1
16 16 17 1
17 17 18 1
18 18 19 1
19 19 20 1
20 20 21 1
21 21 22 1
22 22 23 1
23 23 24 1
24 26 25 1 #Up
25 26 27 1
26 26 28 1
27 27 29 1
28 27 30 1 #Down
29 28 31 1
30 28 32 1 #Up
31 29 1 1 #Up
32 29 33 1
33 31 34 1 #Up
34 34 35 1
35 31 33 1
36 36 37 1
37 36 25 1 #Down
38 36 38 1
39 36 39 1 #Up
40 37 40 1
41 38 41 1
42 39 42 1
43 39 43 2
44 40 44 1
45 41 45 1 #Down
46 41 44 1
47 40 46 1
48 46 47 1
49 47 48 1
50 48 49 1
51 46 50 1 #Down
52 47 51 1 #Up
53 44 52 1 #Up
54 52 53 1
55 53 54 1
56 53 55 2
|
