KEGG   GLYCAN: G12761
Entry
G12761                      Glycan
Composition
(Gal)1 (GalA)1 (GalA4Ac)1 (GlcNAc)1 (L-Lys)1 (*)2

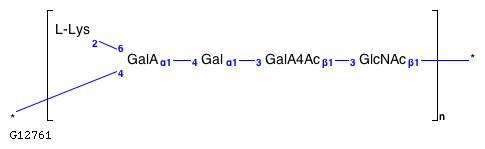

Structure
Reference
1  [PMID:8647292]
  Authors
Shashkov AS, Toukach FV, Paramonov NA, Ziolkowski A, Senchenkova SN, Kaca W, Knirel YA.
  Title
Structures of new acidic O-specific polysaccharides of the bacterium Proteus mirabilis serogroups O26 and O30.
  Journal
FEBS Lett 386:247-51 (1996)
DOI:10.1016/0014-5793(96)00454-1
Other DBs
GlyTouCan: G86868GK
LinkDB
KCF data

NODE        7
            1   *          23     2
            2   GlcNAc     14     2
            3   GalA4Ac     5     2
            4   Gal        -3     2
            5   GalA      -10     2
            6   L-Lys     -17     5
            7   *         -23    -4
EDGE        6
            1     2:b1    1
            2     3:b1    2:3
            3     4:a1    3:3
            4     5:a1    4:4
            5     6:2     5:6
            6     7       5:4
BRACKET     1 -19.0   7.0 -19.0  -4.0
            1  19.0  -4.0  19.0   7.0
            1 n
