KEGG   DRUG: Hypromellose phthtalateHelp
Entry
D01536                      Drug

Name
Hypromellose phthtalate (JP17/NF);
Hydroxypropylmethylcellulose phthalate;
HP 55
Formula
(C36H44O18)n

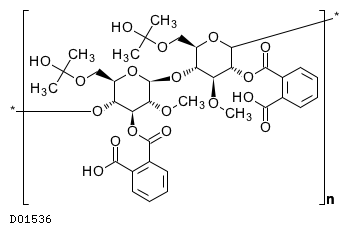

Structure
Mol fileKCF fileDB search
Simcomp SIMCOMP
Remark
ATC code: S01KA02
Chemical structure group: DG01148
Efficacy
Pharmaceutic aid (coating agent)
Brite
Anatomical Therapeutic Chemical (ATC) classification [BR:br08303]
 S SENSORY ORGANS
  S01 OPHTHALMOLOGICALS
   S01K SURGICAL AIDS
    S01KA Viscoelastic substances
     S01KA02 Hypromellose
      D01536  Hypromellose phthtalate (JP17/NF)
Pharmaceutical additives in Japan [BR:br08316]
 Bonding agent
  D01536  [008822] Hydroxypropylmethylcellulose phthtalate
  D01536  [008823] Hydroxypropylmethylcellulose phthtalate
 Coating agent
  D01536  [008822] Hydroxypropylmethylcellulose phthtalate
  D01536  [008823] Hydroxypropylmethylcellulose phthtalate
 Diluting agent
  D01536  [008822] Hydroxypropylmethylcellulose phthtalate
  D01536  [008823] Hydroxypropylmethylcellulose phthtalate
Drugs listed in the Japanese Pharmacopoeia [BR:br08311]
 Chemicals
  D01536  Hypromellose phthtalate
BRITE hierarchy
Other DBs
CAS: 9050-31-1
PubChem: 7848599
ChEBI: 31678
LinkDB All DBs
KCF data Show

ATOM        56
            1   C1y C    31.7800  -10.2200
            2   C1y C    31.7800  -11.6200
            3   C1y C    32.9924  -12.3200
            4   C1y C    34.2049  -11.6200
            5   C1x C    34.2049  -10.2200
            6   O2x O    32.9924   -9.5200
            7   C1b C    30.5676   -9.5200
            8   O2a O    32.9924  -14.1398
            9   O2a O    30.3576  -12.3200
            10  O7a O    35.4360  -12.3310
            11  Z   *    41.5960   -8.1090
            12  C1y C    28.5152  -12.6000
            13  O2x O    27.2840  -11.8890
            14  C1y C    26.0715  -12.5888
            15  C1y C    26.0713  -13.9888
            16  C1y C    27.3024  -14.6998
            17  C1y C    28.5150  -14.0000
            18  O2a O    29.3721  -10.2104
            19  C1d C    28.1847   -9.5249
            20  O1a O    26.9723   -8.8249
            21  C1a C    27.4935  -10.7227
            22  C1a C    28.8929   -8.2979
            23  C1b C    24.8408  -11.8776
            24  O7a O    27.3022  -16.1000
            25  O2a O    29.7084  -14.6895
            26  C7a C    28.5129  -16.7992
            27  O6a O    29.7078  -16.1094
            28  C8y C    28.5128  -18.1998
            29  C8y C    27.2832  -18.9098
            30  C8x C    27.2833  -20.3098
            31  C8x C    28.4958  -21.0097
            32  C8x C    29.7253  -20.2998
            33  C8x C    29.7253  -18.8998
            34  C6a C    26.0793  -18.2146
            35  O6a O    24.8962  -18.8976
            36  O6a O    26.0790  -16.8003
            37  C7a C    36.6411  -11.6352
            38  C8y C    37.8236  -12.3180
            39  O6a O    36.6415  -10.2204
            40  C1a C    30.8951  -14.0047
            41  C1a C    34.1880  -14.8302
            42  C8y C    37.8236  -13.7198
            43  C8x C    39.0360  -14.4198
            44  C8x C    40.2484  -13.7198
            45  C8x C    40.2485  -12.3180
            46  C8x C    39.0360  -11.6180
            47  C6a C    36.5935  -14.4302
            48  O6a O    36.5937  -15.8199
            49  O6a O    35.3891  -13.7349
            50  O2a O    23.6254  -12.5785
            51  C1d C    22.4485  -11.8984
            52  O1a O    21.2361  -11.1984
            53  C1a C    23.1533  -10.6781
            54  C1a C    21.7531  -13.1025
            55  O1a O    24.8305  -14.7051
            56  Z   *    18.8707  -14.7121
BOND        59
            1     1   2 1
            2     2   3 1
            3     3   4 1
            4     4   5 1
            5     5   6 1
            6     1   6 1
            7     1   7 1 #Up
            8     3   8 1 #Up
            9     2   9 1 #Down
            10    4  10 1 #Down
            11    5  11 1
            12   12   9 1 #Up
            13   12  13 1
            14   13  14 1
            15   14  15 1
            16   15  16 1
            17   16  17 1
            18   12  17 1
            19    7  18 1
            20   18  19 1
            21   19  20 1
            22   19  21 1
            23   19  22 1
            24   14  23 1 #Up
            25   16  24 1 #Up
            26   17  25 1 #Down
            27   24  26 1
            28   26  27 2
            29   26  28 1
            30   28  29 2
            31   29  30 1
            32   30  31 2
            33   31  32 1
            34   32  33 2
            35   28  33 1
            36   29  34 1
            37   34  35 1
            38   34  36 2
            39   10  37 1
            40   37  38 1
            41   37  39 2
            42   25  40 1
            43    8  41 1
            44   38  42 2
            45   42  43 1
            46   43  44 2
            47   44  45 1
            48   45  46 2
            49   38  46 1
            50   42  47 1
            51   47  48 2
            52   47  49 1
            53   23  50 1
            54   50  51 1
            55   51  52 1
            56   51  53 1
            57   51  54 1
            58   15  55 1 #Down
            59   55  56 1
BRACKET     1    20.0200  -21.2100   20.0200   -7.6300
            1    40.3900   -7.6300   40.3900  -21.2100
            1  n
 ORIGINAL  1    1   2   3   4   5   6   7   8   9  10  12  13  14  15  16  17
            1   18  19  20  21  22  23  24  25  26  27  28  29  30  31  32  33
            1   34  35  36  37  38  39  40  41  42  43  44  45  46  47  48  49
            1   50  51  52  53  54  55
 REPEAT    1
