KEGG   DRUG: Pirlimycin hydrochloride
Entry
D05501                      Drug
Name
Pirlimycin hydrochloride (USAN);
Pirlimycin hydrochloride hydrate (JAN)
Formula
C17H31ClN2O5S. HCl. H2O
Exact mass
464.1515
Mol weight
465.4327

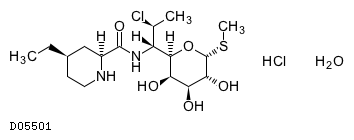

Structure
Simcomp
Class
Antibacterial
 DG01578  Lincosamide antibiotic
Remark
Chemical structure group: DG01577
Efficacy
Antibacterial, Protein biosynthesis inhibitor
Comment
Lincosamide
Target
50S ribosomal subunit
  Pathway
ko03010  Ribosome
Brite
Drug groups [BR:br08330]
 Antibacterial
  DG01578  Lincosamide antibiotic
   DG01577  Pirlimycin
    D05501  Pirlimycin hydrochloride
Antimicrobials [BR:br08307]
 Antibacterials
  Protein biosynthesis inhibitor
   Lincosamide
    D05501  Pirlimycin hydrochloride (USAN)
Drug groups [BR:br08330]
 Antibacterial
  DG01578  Lincosamide antibiotic
   DG01577  Pirlimycin
Other DBs
CAS: 77495-92-2
PubChem: 47207170
LigandBox: D05501
LinkDB
KCF data

ATOM        28
            1   C1y C    23.4806  -20.2195
            2   C1y C    23.4806  -21.6243
            3   C1y C    24.7450  -22.3267
            4   C1y C    25.9391  -21.6243
            5   C1y C    25.9391  -20.2195
            6   O2x O    24.7450  -19.5171
            7   S2a S    27.1332  -19.5171
            8   C1a C    27.1332  -18.1122
            9   O1a O    27.1332  -22.3267
            10  O1a O    24.7450  -23.7316
            11  O1a O    22.2865  -22.3267
            12  C1c C    22.2865  -19.5171
            13  N1b N    21.0924  -20.2195
            14  C1c C    22.2865  -18.1122
            15  C1a C    23.4806  -17.4098
            16  C5a C    19.8983  -19.5171
            17  C1y C    18.6339  -20.2195
            18  O5a O    19.8983  -18.1122
            19  X   Cl   21.0924  -17.4098
            20  C1x C    17.4398  -19.5171
            21  C1y C    16.2457  -20.2195
            22  C1x C    16.2457  -21.6243
            23  C1x C    17.4398  -22.3267
            24  N1x N    18.6339  -21.6243
            25  C1b C    14.9813  -19.5171
            26  C1a C    13.7872  -20.2195
            27  X   Cl   31.0100  -20.5800
            28  O0  O    35.2100  -20.5800
BOND        27
            1     1   2 1
            2     2   3 1
            3     3   4 1
            4     4   5 1
            5     5   6 1
            6     1   6 1
            7     5   7 1 #Down
            8     7   8 1
            9     4   9 1 #Down
            10    3  10 1 #Up
            11    2  11 1 #Up
            12    1  12 1
            13   12  13 1
            14   12  14 1
            15   14  15 1
            16   13  16 1
            17   17  16 1
            18   16  18 2
            19   14  19 1 #Up
            20   17  20 1
            21   20  21 1
            22   21  22 1
            23   22  23 1
            24   23  24 1
            25   17  24 1
            26   21  25 1 #Up
            27   25  26 1
