KEGG   DRUG: EravacyclineHelp
Entry
D10369                      Drug

Name
Eravacycline (USAN)
Formula
C27H31FN4O8
Exact mass
558.2126
Mol weight
558.5554

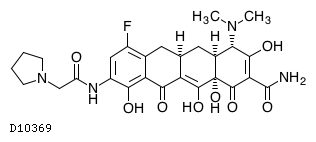

Structure
Mol fileKCF fileDB search
Simcomp SIMCOMP
Class
Antibacterial
 DG01197  Tetracycline antibiotic
Remark
ATC code: J01AA13
Chemical structure group: DG01199
Product (DG01199): D10421<US>
Efficacy
Antibiotic, Protein biosynthesis inhibitor
Target
30S ribosomal subunit
Interaction
Drug interaction
Brite
Anatomical Therapeutic Chemical (ATC) classification [BR:br08303]
 J ANTIINFECTIVES FOR SYSTEMIC USE
  J01 ANTIBACTERIALS FOR SYSTEMIC USE
   J01A TETRACYCLINES
    J01AA Tetracyclines
     J01AA13 Eravacycline
      D10369  Eravacycline (USAN)
New drug approvals in Europe [br08329.html]
 European public assessment reports (EPAR) authorised medicine
  D10369
New drug approvals in the USA, Europe and Japan [br08328.html]
 Approval dates by FDA, EMA and PMDA
  D10369
BRITE hierarchy
Other DBs
CAS: 1207283-85-9
PubChem: 172232462
ChEMBL: CHEMBL1951095
LinkDB All DBs
KCF data Show

ATOM        40
            1   C2y C    27.3700  -20.1600
            2   C2y C    27.3700  -21.6300
            3   C5x C    26.1800  -22.3300
            4   C1y C    26.1800  -19.4600
            5   C1y C    24.9900  -20.1600
            6   C1z C    24.9900  -21.6300
            7   C2y C    23.8000  -22.3300
            8   C1x C    23.8000  -19.4600
            9   C1y C    22.5400  -20.1600
            10  C2y C    22.5400  -21.6300
            11  C5x C    21.2800  -22.3300
            12  C1x C    21.2100  -19.4600
            13  C8y C    20.0900  -20.1600
            14  C8y C    20.0900  -21.6300
            15  C8y C    18.9000  -22.3300
            16  C8y C    17.6400  -21.7000
            17  C8x C    17.6400  -20.2300
            18  C8y C    18.8300  -19.4600
            19  N1b N    16.4500  -22.4000
            20  C5a C    15.2600  -21.7000
            21  O5x O    26.1800  -23.7300
            22  O1a O    23.8000  -23.7300
            23  O5x O    21.2800  -23.7300
            24  O1a O    18.9000  -23.8000
            25  O5a O    15.2600  -20.2300
            26  X   F    18.8300  -18.0600
            27  O1a O    28.6300  -19.4600
            28  C5a C    28.6300  -22.3300
            29  N1a N    29.8200  -21.6300
            30  O5a O    28.6300  -23.7300
            31  O1a O    24.9900  -23.0300
            32  C1b C    14.0447  -22.3951
            33  N1y N    12.8563  -21.7023
            34  C1x C    12.8522  -20.3003
            35  C1x C    11.5198  -19.8715
            36  C1x C    10.7003  -21.0062
            37  C1x C    11.5262  -22.1362
            38  N1c N    26.1800  -18.0600
            39  C1a C    27.3924  -17.3600
            40  C1a C    24.9676  -17.3600
BOND        44
            1     5   4 1
            2     4   1 1
            3     9  10 1
            4    10  11 1
            5    11  14 1
            6    13  12 1
            7    12   9 1
            8     1   2 2
            9     2   3 1
            10    5   6 1
            11    6   7 1
            12    3  21 2
            13    7  10 2
            14    7  22 1
            15   13  14 1
            16   11  23 2
            17   14  15 2
            18   15  24 1
            19   15  16 1
            20   16  17 2
            21   17  18 1
            22   18  13 2
            23    9   8 1
            24   16  19 1
            25    8   5 1
            26   19  20 1
            27    3   6 1
            28   20  25 2
            29   18  26 1
            30    1  27 1
            31    2  28 1
            32   28  29 1
            33   28  30 2
            34    6  31 1 #Down
            35   20  32 1
            36   32  33 1
            37   33  34 1
            38   34  35 1
            39   35  36 1
            40   36  37 1
            41   33  37 1
            42    4  38 1 #Down
            43   38  39 1
            44   38  40 1
