COMPOUND: C11447
Help
Entry
C11447 Compound
Name
dTDP-4-dimethylamino-4,6-dideoxy-5-C-methyl-D-allose
Formula
C19H33N3O14P2
Exact mass
589.1438
Mol weight
589.42

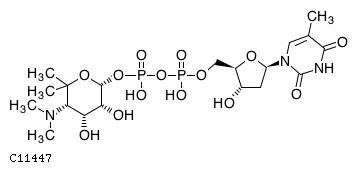

Structure
Mol file
KCF file
DB search
Reaction
R11465
Pathway
map00523
Polyketide sugar unit biosynthesis
map01059
Biosynthesis of enediyne antibiotics
map01110
Biosynthesis of secondary metabolites
Enzyme
2.1.1.-
Other DBs
PubChem:
13619
ChEBI:
10512
NIKKAJI:
J2.774.472I
LinkDB
All DBs
KCF data
Show
ATOM 38
1 C1y C 28.0994 -16.6058
2 N4y N 29.4293 -16.1691
3 O2x O 27.0076 -15.8071
4 C1x C 27.6849 -17.9721
5 C8y C 30.4732 -17.0963
6 C8x C 29.7143 -14.8097
7 C1y C 25.8700 -16.6349
8 C1y C 26.2905 -17.9721
9 N4x N 31.8092 -16.6583
10 O5x O 30.1989 -18.4613
11 C8y C 31.0396 -14.3602
12 C1b C 24.5459 -16.2101
13 O1a O 25.4684 -19.0918
14 C8y C 32.0953 -15.2874
15 C1a C 31.3071 -12.9952
16 O2b O 23.5137 -17.1371
17 O5x O 33.4194 -14.8624
18 P1b P 22.1252 -17.1371
19 O2c O 20.7310 -17.1371
20 O1c O 22.1136 -18.5314
21 O1c O 22.1136 -15.7488
22 P1b P 19.3425 -17.1312
23 O1c O 19.3368 -18.5254
24 O1c O 19.3368 -15.7429
25 O2b O 17.7411 -17.1686
26 C1z C 14.1302 -17.8617
27 C1y C 14.1302 -19.2515
28 C1y C 15.3358 -19.9429
29 C1y C 16.5344 -19.2515
30 C1y C 16.5344 -17.8617
31 O2x O 15.3358 -17.1632
32 C1a C 12.9207 -17.0225
33 N1c N 12.9207 -19.9435
34 C1a C 11.7176 -19.2527
35 O1a O 15.3376 -21.3328
36 C1a C 12.9324 -18.2836
37 O1a O 17.7377 -19.9420
38 C1a C 12.9197 -21.3405
BOND 40
1 11 15 1
2 12 16 1
3 14 17 2
4 16 18 1
5 18 19 1
6 18 20 1
7 18 21 2
8 19 22 1
9 22 23 1
10 22 24 2
11 7 8 1
12 11 14 1
13 22 25 1
14 1 2 1 #Up
15 1 3 1
16 1 4 1
17 2 5 1
18 2 6 1
19 3 7 1
20 26 27 1
21 27 28 1
22 28 29 1
23 29 30 1
24 30 31 1
25 31 26 1
26 4 8 1
27 26 32 1
28 5 9 1
29 27 33 1 #Down
30 5 10 2
31 33 34 1
32 6 11 2
33 7 12 1 #Up
34 28 35 1 #Down
35 8 13 1 #Down
36 26 36 1
37 9 14 1
38 29 37 1 #Down
39 30 25 1 #Down
40 33 38 1
