KEGG   COMPOUND: C21355
Entry
C21355                      Compound
Name
dTDP-4-methylamino-2,4-dideoxy-beta-L-xylose
Formula
C16H27N3O13P2
Exact mass
531.1019
Mol weight
531.35

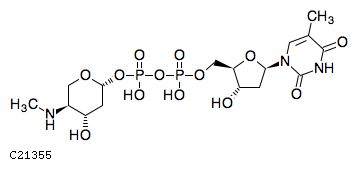

Structure
Reaction
Pathway
map00523  Polyketide sugar unit biosynthesis
map01110  Biosynthesis of secondary metabolites
Enzyme
2.1.1.-
Other DBs
PubChem: 328082923
LinkDB
KCF data

ATOM        34
            1   C1y C    23.4753  -15.6477
            2   N4y N    24.8172  -15.2083
            3   O2x O    22.3798  -14.8449
            4   C1x C    23.0594  -17.0246
            5   C8y C    25.8719  -16.1457
            6   C8x C    25.1103  -13.8310
            7   C1y C    21.2310  -15.6828
            8   C1y C    21.6531  -17.0246
            9   N4x N    27.2196  -15.7002
            10  O5x O    25.5967  -17.5169
            11  C8y C    26.4402  -13.3858
            12  C1b C    19.8950  -15.2492
            13  O1a O    20.8209  -18.1497
            14  C8y C    27.5069  -14.3233
            15  C1a C    26.7158  -12.0086
            16  O2b O    18.8521  -16.1866
            17  O5x O    28.8428  -13.8838
            18  P1b P    17.4516  -16.1866
            19  O2c O    16.0511  -16.1866
            20  O1c O    17.4457  -17.5872
            21  O1c O    17.4457  -14.7863
            22  P1b P    14.6448  -16.1866
            23  O2b O    13.2444  -16.1866
            24  O1c O    14.6390  -17.5872
            25  O1c O    14.6390  -14.7863
            26  C1y C    12.0548  -16.8722
            27  C1x C    12.0431  -18.2553
            28  O2x O    10.8653  -16.1808
            29  C1y C    10.8418  -18.9407
            30  C1x C     9.6640  -16.8546
            31  C1y C     9.6522  -18.2376
            32  O1a O    10.8301  -20.3412
            33  N1b N     8.4282  -18.9289
            34  C1a C     7.1888  -18.1979
BOND        36
            1     1   2 1 #Up
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 1
            6     3   7 1
            7     4   8 1
            8     5   9 1
            9     5  10 2
            10    6  11 2
            11    7  12 1 #Up
            12    8  13 1 #Down
            13    9  14 1
            14   11  15 1
            15   12  16 1
            16   14  17 2
            17   16  18 1
            18   18  19 1
            19   18  20 1
            20   18  21 2
            21   19  22 1
            22   22  23 1
            23   22  24 1
            24   22  25 2
            25   26  23 1 #Down
            26   26  27 1
            27   26  28 1
            28   27  29 1
            29   28  30 1
            30   29  31 1
            31   29  32 1 #Down
            32    7   8 1
            33   11  14 1
            34   30  31 1
            35   31  33 1 #Up
            36   33  34 1
