KEGG   COMPOUND: C21362
Entry
C21362                      Compound
Name
dTDP-3-methyl-4-oxo-alpha-D-ribopyranose
Formula
C16H24N2O15P2
Exact mass
546.0652
Mol weight
546.31

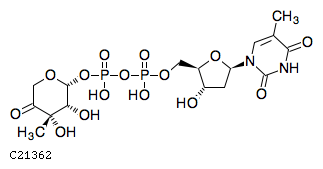

Structure
Reaction
Pathway
map00523  Polyketide sugar unit biosynthesis
map01110  Biosynthesis of secondary metabolites
Enzyme
2.1.1.-
Other DBs
PubChem: 328082924
LinkDB
KCF data

ATOM        35
            1   C1y C    23.4791  -15.6502
            2   N4y N    24.8212  -15.2107
            3   O2x O    22.3834  -14.8472
            4   C1x C    23.0631  -17.0273
            5   C8y C    25.8761  -16.1483
            6   C8x C    25.1143  -13.8332
            7   C1y C    21.2344  -15.6853
            8   C1y C    21.6566  -17.0273
            9   N4x N    27.2240  -15.7027
            10  O5x O    25.6008  -17.5197
            11  C8y C    26.4445  -13.3879
            12  C1b C    19.8982  -15.2516
            13  O1a O    20.8242  -18.1526
            14  C8y C    27.5113  -14.3256
            15  C1a C    26.7201  -12.0105
            16  O2b O    18.8551  -16.1892
            17  O5x O    28.8475  -13.8860
            18  P1b P    17.4544  -16.1892
            19  O2c O    16.0536  -16.1892
            20  O1c O    17.4485  -17.5900
            21  O1c O    17.4485  -14.7886
            22  P1b P    14.6471  -16.1892
            23  O2b O    13.2465  -16.1892
            24  O1c O    14.6413  -17.5900
            25  O1c O    14.6413  -14.7886
            26  C1y C    12.0567  -16.8749
            27  C1y C    12.0450  -18.2582
            28  O2x O    10.8671  -16.1834
            29  C1z C    10.8436  -18.9437
            30  C1x C     9.6656  -16.8573
            31  C5x C     9.6538  -18.2405
            32  O5x O     8.4296  -18.9319
            33  O1a O    13.2457  -18.9623
            34  C1a C    10.1436  -20.1562
            35  O1a O    11.5436  -20.1562
BOND        37
            1     1   2 1 #Up
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 1
            6     3   7 1
            7     4   8 1
            8     5   9 1
            9     5  10 2
            10    6  11 2
            11    7  12 1 #Up
            12    8  13 1 #Down
            13    9  14 1
            14   11  15 1
            15   12  16 1
            16   14  17 2
            17   16  18 1
            18   18  19 1
            19   18  20 1
            20   18  21 2
            21   19  22 1
            22   22  23 1
            23   22  24 1
            24   22  25 2
            25   26  23 1 #Down
            26   26  27 1
            27   26  28 1
            28   27  29 1
            29   28  30 1
            30   29  31 1
            31    7   8 1
            32   11  14 1
            33   30  31 1
            34   31  32 2
            35   27  33 1 #Down
            36   29  34 1 #Up
            37   29  35 1 #Down
