KEGG   COMPOUND: C04882Help
Entry
C04882                      Compound

Name
UDP-N-acetylmuramoyl-L-alanyl-D-glutamyl-6-carboxy-L-lysyl-D-alanyl-D-alanine;
UDP-N-acetylmuramoyl-L-alanyl-D-glutamyl-meso-2,6-diaminopimeloyl-D-alanyl-D-alanine;
UDP-N-acetylmuramoyl-L-alanyl-D-gamma-glutamyl-6-carboxy-L-lysyl-D-alanyl-D-alanine
Formula
C41H65N9O28P2
Exact mass
1193.3414
Mol weight
1193.9458

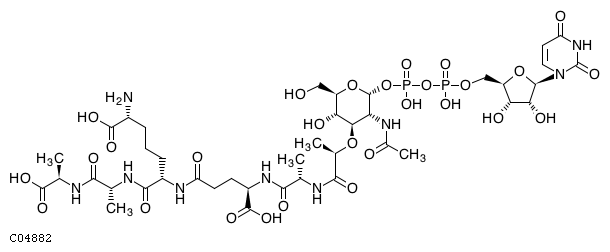

Structure
Mol fileKCF fileDB search
Reaction
Pathway
map00300  Lysine biosynthesis
map00550  Peptidoglycan biosynthesis
Enzyme
2.7.8.13        3.4.17.8        6.3.2.10
Other DBs
PubChem: 7434
ChEBI: 18199
3DMET: B04972
NIKKAJI: J2.754.729J
LinkDB All DBs
KCF data Show

ATOM        80
            1   C1y C    29.2787  -16.9887
            2   C1y C    29.2787  -18.4065
            3   O2x O    28.0735  -16.3507
            4   O2b O    30.4838  -16.3507
            5   C1y C    28.0735  -19.1154
            6   C1y C    26.9393  -16.9887
            7   P1b P    31.8307  -16.3507
            8   C1y C    26.9393  -18.4065
            9   O2a O    28.0735  -20.4623
            10  C1b C    25.7342  -16.3507
            11  O2c O    33.2484  -16.3507
            12  O1c O    31.8307  -14.9329
            13  O1c O    31.8307  -17.6975
            14  O1a O    25.7342  -19.1154
            15  O1a O    24.4582  -16.9887
            16  P1b P    34.5954  -16.3507
            17  O2b O    36.0131  -16.3507
            18  O1c O    34.5954  -14.9329
            19  O1c O    34.5954  -17.6975
            20  C1b C    37.3601  -15.8545
            21  C1y C    38.6361  -16.2798
            22  O2x O    39.7702  -15.4291
            23  C1y C    39.1323  -17.5558
            24  C1y C    40.9045  -16.2798
            25  C1y C    40.4792  -17.5558
            26  O1a O    38.2816  -18.6901
            27  N4y N    42.6058  -15.6417
            28  O1a O    41.2590  -18.6901
            29  C8y C    43.8109  -14.9329
            30  C8x C    41.4008  -14.9329
            31  N4x N    43.8109  -13.5860
            32  O5x O    45.0161  -15.6417
            33  C8x C    41.4008  -13.5860
            34  C8y C    42.6058  -12.8771
            35  O5x O    42.6058  -11.5302
            36  N1b N    30.4838  -19.1154
            37  C5a C    30.4838  -20.5331
            38  C1a C    31.6889  -21.2420
            39  O5a O    29.2787  -21.2420
            40  C1c C    26.8457  -21.1712
            41  C1a C    25.6350  -20.4720
            42  C5a C    26.8456  -22.8723
            43  N1b N    25.6348  -23.5715
            44  O5a O    28.0905  -23.5912
            45  C1c C    24.4326  -22.8774
            46  C5a C    23.2261  -23.5741
            47  N1b N    22.0217  -22.8787
            48  C1c C    20.8163  -23.5747
            49  C1b C    19.6112  -22.8790
            50  C1b C    18.4061  -23.5749
            51  C5a C    17.2009  -22.8791
            52  C6a C    20.8162  -24.9990
            53  O6a O    19.6083  -25.6964
            54  O6a O    22.0639  -25.7195
            55  O5a O    23.2260  -24.8571
            56  C1a C    24.4325  -21.5258
            57  O5a O    17.2007  -21.4550
            58  N1b N    15.9960  -23.5750
            59  C1c C    14.7905  -22.8793
            60  C5a C    13.5857  -23.5752
            61  N1b N    12.3803  -22.8793
            62  O5a O    13.5858  -24.9990
            63  C1c C    11.1754  -23.5752
            64  C5a C     9.9700  -22.8793
            65  N1b N     8.7652  -23.5752
            66  C1c C     7.5598  -22.8793
            67  C6a C     6.3549  -23.5752
            68  C1a C     7.5595  -21.4551
            69  O6a O     5.1495  -22.8793
            70  O6a O     6.3550  -24.9990
            71  C1a C    11.1755  -24.9990
            72  O5a O     9.9697  -21.4551
            73  C1b C    14.7902  -21.4551
            74  C1b C    13.5825  -20.7578
            75  C1b C    13.5821  -19.3283
            76  C1c C    12.3766  -18.6325
            77  C6a C    11.1774  -19.3251
            78  O6a O     9.9691  -18.6276
            79  O6a O    11.1775  -20.7254
            80  N1a N    12.3764  -17.2248
BOND        82
            1     1   2 1
            2     1   3 1
            3     1   4 1 #Down
            4     2   5 1
            5     3   6 1
            6     4   7 1
            7     5   8 1
            8     5   9 1 #Up
            9     6  10 1 #Up
            10    7  11 1
            11    7  12 2
            12    7  13 1
            13    8  14 1 #Down
            14   10  15 1
            15   11  16 1
            16   16  17 1
            17   16  18 2
            18   16  19 1
            19   17  20 1
            20   21  20 1 #Up
            21   21  22 1
            22   21  23 1
            23   22  24 1
            24   23  25 1
            25   23  26 1 #Down
            26   24  27 1 #Up
            27   25  28 1 #Down
            28   27  29 1
            29   27  30 1
            30   29  31 1
            31   29  32 2
            32   30  33 2
            33   31  34 1
            34   34  35 2
            35    6   8 1
            36   24  25 1
            37   33  34 1
            38    2  36 1 #Down
            39   36  37 1
            40   37  38 1
            41   37  39 2
            42    9  40 1
            43   40  41 1 #Up
            44   40  42 1
            45   42  43 1
            46   42  44 2
            47   43  45 1
            48   45  46 1
            49   46  47 1
            50   47  48 1
            51   48  49 1
            52   49  50 1
            53   50  51 1
            54   48  52 1 #Up
            55   52  53 2
            56   52  54 1
            57   46  55 2
            58   45  56 1 #Down
            59   51  57 2
            60   51  58 1
            61   58  59 1
            62   59  60 1
            63   60  61 1
            64   60  62 2
            65   61  63 1
            66   63  64 1
            67   64  65 1
            68   65  66 1
            69   66  67 1
            70   66  68 1 #Up
            71   67  69 1
            72   67  70 2
            73   63  71 1 #Down
            74   64  72 2
            75   59  73 1 #Down
            76   73  74 1
            77   74  75 1
            78   75  76 1
            79   76  77 1
            80   77  78 1
            81   77  79 2
            82   76  80 1 #Down
