KEGG   COMPOUND: C07574Help
Entry
C07574                      Compound

Name
Tartrazine;
Acid Yellow 23;
Food yellow No.4
Formula
C16H9N4O9S2. 3Na
Exact mass
533.9504
Mol weight
534.3634

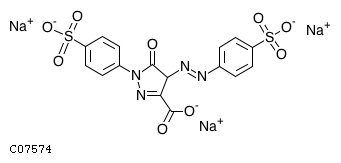

Structure
Mol fileKCF fileDB search
Brite
Pharmaceutical additives in Japan [BR:br08316]
 Coloring agent
  C07574  [102395] Food yellow No.4
BRITE hierarchy
Other DBs
CAS: 1934-21-0
PubChem: 9777
ChEBI: 9405
NIKKAJI: J3.689G
LinkDB All DBs
KCF data Show

ATOM        34
            1   N1y N    26.1470  -19.7567
            2   C8y C    24.9638  -19.0690
            3   C5x C    27.2951  -18.9640
            4   N2x N    26.5083  -21.1439
            5   C8x C    24.9638  -17.7051
            6   C8x C    23.7806  -19.7567
            7   C1y C    28.3617  -19.8615
            8   O5x O    27.2951  -17.5711
            9   C2y C    27.8779  -21.1380
            10  C8x C    23.7806  -17.0231
            11  C8x C    22.5975  -19.0690
            12  N2b N    29.5798  -19.1388
            13  C6a C    28.6298  -22.2921
            14  C8y C    22.5975  -17.7051
            15  N2b N    30.7689  -19.8265
            16  O6a O    28.0179  -23.5101
            17  O6a O    29.8596  -22.2454 #-
            18  S4a S    21.3967  -17.0231
            19  C8y C    31.9578  -19.1388
            20  O1d O    22.0437  -15.6069
            21  O1d O    20.7323  -18.7309
            22  O1d O    19.9514  -16.3763 #-
            23  C8x C    31.9578  -17.7808
            24  C8x C    33.1410  -19.8265
            25  C8x C    33.1410  -17.0931
            26  C8x C    34.3184  -19.1388
            27  C8y C    34.3184  -17.7808
            28  S4a S    35.5133  -17.0931
            29  O1d O    34.7263  -15.7526
            30  O1d O    36.3175  -18.2355
            31  O1d O    36.6614  -16.3820 #-
            32  Z   Na   17.6491  -16.3179 #+
            33  Z   Na   30.9554  -23.2829 #+
            34  Z   Na   38.3983  -16.5918 #+
BOND        33
            1     1   2 1
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 2
            6     3   7 1
            7     3   8 2
            8     4   9 2
            9     5  10 2
            10    6  11 1
            11    7  12 1
            12    9  13 1
            13   10  14 1
            14   12  15 2
            15   13  16 2
            16   13  17 1
            17   14  18 1
            18   15  19 1
            19   18  20 2
            20   18  21 2
            21   18  22 1
            22   19  23 2
            23   19  24 1
            24   23  25 1
            25   24  26 2
            26   25  27 2
            27   27  28 1
            28   28  29 2
            29   28  30 2
            30   28  31 1
            31    7   9 1
            32   11  14 2
            33   26  27 1
