| Entry |
|
|---|
| Name |
dTDP-L-mycarose;
dTDP-beta-L-mycarose;
dTDP-2,6-dideoxy-3-C-methyl-beta-L-ribo-hexose
|
|---|
| Formula |
C17H28N2O14P2
|
|---|
| Exact mass |
546.1016
|
|---|
| Mol weight |
546.36
|
|---|

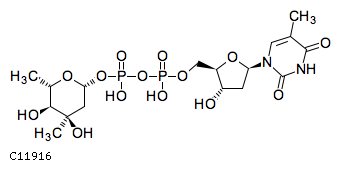

| Structure |
|
|---|
| Reaction |
|
|---|
| Pathway |
| map00522 | Biosynthesis of 12-, 14- and 16-membered macrolides |
| map00523 | Polyketide sugar unit biosynthesis |
| map01110 | Biosynthesis of secondary metabolites |
| map01250 | Biosynthesis of nucleotide sugars |
|
|---|
| Module |
| M00798 | dTDP-L-mycarose biosynthesis |
|
|---|
| Enzyme |
|
|---|
| Other DBs |
|
|---|
| LinkDB |
|
|---|
| KCF data |
ATOM 35
1 C1y C 26.9380 -15.7807
2 N4y N 28.2821 -15.3406
3 O2x O 25.8404 -14.9766
4 C1x C 26.5213 -17.1601
5 C8y C 29.3386 -16.2797
6 C8x C 28.5757 -13.9611
7 C1y C 24.6898 -15.8160
8 C1y C 25.1125 -17.1601
9 N4x N 30.6887 -15.8335
10 O5x O 29.0629 -17.6532
11 C8y C 29.9080 -13.5151
12 C1b C 23.3515 -15.3816
13 O1a O 24.2789 -18.2871
14 C8y C 30.9764 -14.4542
15 O2b O 22.3067 -16.3207
16 O5x O 32.3146 -14.0140
17 P1b P 20.9039 -16.3207
18 O2c O 19.5009 -16.3207
19 O1c O 20.8979 -17.7237
20 O1c O 20.8979 -14.9179
21 P1b P 18.0922 -16.3207
22 O2b O 16.6893 -16.3207
23 O1c O 18.0864 -17.7237
24 O1c O 18.0864 -14.9179
25 C1y C 15.4978 -17.0075
26 C1x C 15.4860 -18.3928
27 O2x O 14.3062 -16.3149
28 C1z C 14.2827 -19.0795
29 C1y C 13.1029 -16.9898
30 C1y C 13.0912 -18.3751
31 C1a C 11.9171 -16.3032
32 O1a O 11.8703 -19.0620
33 C1a C 30.1773 -12.1305
34 O1a O 14.9708 -20.2728
35 C1a C 13.5877 -20.2658
BOND 37
1 1 4 1
2 2 5 1
3 2 6 1
4 3 7 1
5 4 8 1
6 5 9 1
7 5 10 2
8 6 11 2
9 7 12 1 #Up
10 8 13 1 #Down
11 9 14 1
12 11 33 1
13 12 15 1
14 14 16 2
15 15 17 1
16 17 18 1
17 17 19 1
18 17 20 2
19 18 21 1
20 21 22 1
21 21 23 1
22 21 24 2
23 25 22 1 #Down
24 25 26 1
25 25 27 1
26 26 28 1
27 27 29 1
28 28 30 1
29 29 31 1 #Down
30 30 32 1 #Up
31 7 8 1
32 11 14 1
33 29 30 1
34 1 2 1 #Up
35 28 34 1 #Up
36 1 3 1
37 28 35 1 #Down
|
|---|
