Entry
C11926                      Compound

Name
dTDP-4-oxo-6-deoxy-D-allose;
dTDP-4-dehydro-6-deoxy-alpha-D-allose;
dTDP-4-dehydro-6-deoxy-alpha-D-gulose
Formula
C16H24N2O15P2
Exact mass
546.0652
Mol weight
546.3137

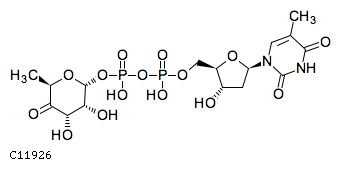

Structure
Mol fileKCF fileDB search
Reaction
Pathway
map00523  Polyketide sugar unit biosynthesis
map01100  Metabolic pathways
map01130  Biosynthesis of antibiotics
Module
M00794  dTDP-6-deoxy-D-allose biosynthesis
M00795  dTDP-beta-L-noviose biosynthesis
Enzyme
1.1.1.364       2.1.1.-         5.1.3.27
Other DBs
PubChem: 14087
ChEBI: 76289
3DMET: B05569
NIKKAJI: J2.777.805D
LinkDB All DBs
KCF data Show

ATOM        35
            1   C1y C    31.9798  -20.8273
            2   N4y N    33.3225  -20.3876
            3   O2x O    30.8834  -20.0241
            4   C1x C    31.5636  -22.2052
            5   C8y C    34.3780  -21.3257
            6   C8x C    33.6158  -19.0096
            7   C1y C    29.7341  -20.8625
            8   C1y C    30.1563  -22.2052
            9   N4x N    35.7266  -20.8801
            10  O5x O    34.1025  -22.6978
            11  C8y C    34.9468  -18.5641
            12  C1b C    28.3972  -20.4286
            13  O1a O    29.3236  -23.3311
            14  C8y C    36.0140  -19.5022
            15  C1a C    35.2224  -17.1860
            16  O2b O    27.3534  -21.3667
            17  O5x O    37.3509  -19.0625
            18  P1b P    25.9521  -21.3667
            19  O2c O    24.5506  -21.3667
            20  O1c O    25.9461  -22.7682
            21  O1c O    25.9461  -19.9654
            22  P1b P    23.1433  -21.3667
            23  O2b O    21.7420  -21.3667
            24  O1c O    23.1375  -22.7682
            25  O1c O    23.1375  -19.9654
            26  C1y C    20.5516  -22.0529
            27  C1y C    20.5399  -23.4367
            28  O2x O    19.3613  -21.3609
            29  C1y C    19.3379  -24.1226
            30  O1a O    21.7537  -24.1461
            31  C1y C    18.1593  -22.0352
            32  C5x C    18.1476  -23.4190
            33  O1a O    19.3261  -25.5242
            34  C1a C    16.9748  -21.3492
            35  O5x O    16.9280  -24.1051
BOND        37
            1     1   2 1 #Up
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 1
            6     3   7 1
            7     4   8 1
            8     5   9 1
            9     5  10 2
            10    6  11 2
            11    7  12 1 #Up
            12    8  13 1 #Down
            13    9  14 1
            14   11  15 1
            15   12  16 1
            16   14  17 2
            17   16  18 1
            18   18  19 1
            19   18  20 1
            20   18  21 2
            21   19  22 1
            22   22  23 1
            23   22  24 1
            24   22  25 2
            25   26  23 1 #Down
            26   26  27 1
            27   26  28 1
            28   27  29 1
            29   27  30 1 #Down
            30   28  31 1
            31   29  32 1
            32   29  33 1 #Down
            33   31  34 1 #Up
            34   32  35 2
            35    7   8 1
            36   11  14 1
            37   31  32 1
