| Entry |
|
|---|
| Name |
dTDP-4-oxo-2,6-dideoxy-D-allose
|
|---|
| Formula |
C16H24N2O14P2
|
|---|
| Exact mass |
530.0703
|
|---|
| Mol weight |
530.31
|
|---|

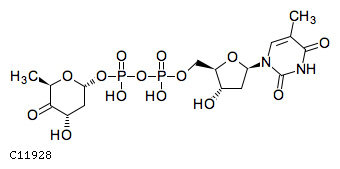

| Structure |
|
|---|
| Reaction |
|
|---|
| Pathway |
| map00523 | Polyketide sugar unit biosynthesis |
| map01110 | Biosynthesis of secondary metabolites |
| map01250 | Biosynthesis of nucleotide sugars |
|
|---|
| Module |
| M00798 | dTDP-L-mycarose biosynthesis |
| M00799 | dTDP-L-oleandrose biosynthesis |
|
|---|
| Enzyme |
1.1.1.- 2.1.1.- 5.1.3.-
|
|---|
| Other DBs |
|
|---|
| LinkDB |
|
|---|
| KCF data |
ATOM 34
1 C1y C 32.0033 -20.8664
2 N4y N 33.3461 -20.4266
3 O2x O 30.9067 -20.0630
4 C1x C 31.5870 -22.2444
5 C8y C 34.4017 -21.3648
6 C8x C 33.6395 -19.0484
7 C1y C 29.7573 -20.9016
8 C1y C 30.1795 -22.2444
9 N4x N 35.7505 -20.9191
10 O5x O 34.1262 -22.7371
11 C8y C 34.9706 -18.6028
12 C1b C 28.4202 -20.4676
13 O1a O 29.3467 -23.3704
14 C8y C 36.0379 -19.5411
15 C1a C 35.2463 -17.2246
16 O2b O 27.3764 -21.4058
17 O5x O 37.3750 -19.1013
18 P1b P 25.9749 -21.4058
19 O2c O 24.5732 -21.4058
20 O1c O 25.9689 -22.8075
21 O1c O 25.9689 -20.0043
22 P1b P 23.1657 -21.4058
23 O2b O 21.7642 -21.4058
24 O1c O 23.1600 -22.8075
25 O1c O 23.1600 -20.0043
26 C1y C 20.5738 -22.0920
27 C1x C 20.5620 -23.4760
28 O2x O 19.3833 -21.4001
29 C1y C 19.3599 -24.1621
30 C1y C 18.1811 -22.0744
31 C5x C 18.1694 -23.4583
32 O1a O 19.3481 -25.5637
33 C1a C 16.9965 -21.3883
34 O5x O 16.9497 -24.1446
BOND 36
1 1 2 1 #Up
2 1 3 1
3 1 4 1
4 2 5 1
5 2 6 1
6 3 7 1
7 4 8 1
8 5 9 1
9 5 10 2
10 6 11 2
11 7 12 1 #Up
12 8 13 1 #Down
13 9 14 1
14 11 15 1
15 12 16 1
16 14 17 2
17 16 18 1
18 18 19 1
19 18 20 1
20 18 21 2
21 19 22 1
22 22 23 1
23 22 24 1
24 22 25 2
25 26 23 1 #Down
26 26 27 1
27 26 28 1
28 27 29 1
29 28 30 1
30 29 31 1
31 29 32 1 #Down
32 30 33 1 #Up
33 31 34 2
34 7 8 1
35 11 14 1
36 30 31 1
|
|---|
