Entry |
|
Name |
Clorobiocin;
Chlorobiocin
|
Formula |
C35H37ClN2O11
|
Exact mass |
696.2086
|
Mol weight |
697.12
|

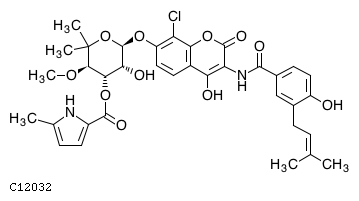

Structure |
|
Reaction |
|
Pathway |
map01110 | Biosynthesis of secondary metabolites |
|
Brite |
Secondary metabolites in pathway maps [br08011.html]
Biosynthetic pathways and modules of secondary metabolites
C12032
|
Other DBs |
|
LinkDB |
|
KCF data |
ATOM 49
1 N1b N 29.5182 -16.1987
2 C5a C 30.7102 -15.5113
3 C8y C 31.8959 -16.1987
4 O5a O 30.7102 -14.1427
5 C8x C 31.9021 -17.5735
6 C8x C 33.0752 -15.5176
7 C8y C 33.0815 -18.2610
8 C8x C 34.2672 -16.1924
9 C8y C 34.2736 -17.5673
10 C1b C 33.0815 -19.6359
11 O1a O 35.4591 -18.2484
12 C2b C 34.2736 -20.3234
13 C2c C 34.2736 -21.6920
14 C1a C 35.4591 -22.3793
15 C1a C 33.0815 -22.3793
16 C8y C 28.2570 -15.5101
17 C8x C 18.2585 -21.0663
18 C8y C 18.7282 -19.6322
19 N4x N 17.5041 -18.7420
20 C8y C 16.2801 -19.6322
21 C8x C 16.7496 -21.0663
22 C8y C 25.8989 -14.1164
23 C8y C 25.8989 -15.5038
24 C8y C 24.7005 -13.4289
25 O7x O 27.1035 -13.4100
26 C8y C 27.1099 -16.1976
27 C8x C 24.7005 -16.2038
28 C8y C 23.5086 -14.1164
29 C8y C 28.3144 -14.1038
30 O1a O 27.1099 -17.5724
31 C8x C 23.5086 -15.5038
32 O2a O 22.3229 -13.4353
33 O6a O 29.5001 -13.4162
34 C1y C 21.1373 -14.1226
35 C1y C 21.1373 -15.5101
36 O2x O 19.9326 -13.4353
37 C1y C 19.9326 -16.2102
38 O1a O 22.3293 -16.1913
39 C1z C 18.7470 -14.1226
40 C1y C 18.7470 -15.5101
41 O7a O 19.9326 -17.5850
42 C1a C 17.9271 -12.6973
43 C1a C 17.3279 -14.4001
44 O2a O 17.5549 -16.1913
45 C1a C 16.1548 -16.1976
46 X Cl 24.6989 -12.0473
47 C7a C 19.9212 -18.9562
48 O6a O 21.1033 -19.6516
49 C1a C 14.8444 -19.1678
BOND 53
1 12 13 2
2 13 14 1
3 13 15 1
4 8 9 2
5 1 16 1
6 1 2 1
7 2 3 1
8 2 4 2
9 3 5 1
10 3 6 2
11 17 18 2
12 18 19 1
13 19 20 1
14 20 21 2
15 21 17 1
16 5 7 2
17 6 8 1
18 22 23 2
19 22 24 1
20 22 25 1
21 23 26 1
22 23 27 1
23 24 28 2
24 25 29 1
25 26 16 2
26 26 30 1
27 27 31 2
28 28 32 1
29 29 33 2
30 34 32 1 #Up
31 34 35 1
32 34 36 1
33 35 37 1
34 35 38 1 #Down
35 36 39 1
36 37 40 1
37 37 41 1 #Down
38 39 42 1
39 39 43 1
40 40 44 1 #Up
41 44 45 1
42 28 31 1
43 29 16 1
44 39 40 1
45 7 9 1
46 24 46 1
47 7 10 1
48 41 47 1
49 47 18 1
50 9 11 1
51 47 48 2
52 10 12 1
53 20 49 1
|
