| Entry |
|
|---|
| Name |
dTDP-5-dimethyl-L-lyxose;
dTDP-4-O-demethyl-beta-L-noviose
|
|---|
| Formula |
C17H28N2O15P2
|
|---|
| Exact mass |
562.0965
|
|---|
| Mol weight |
562.36
|
|---|

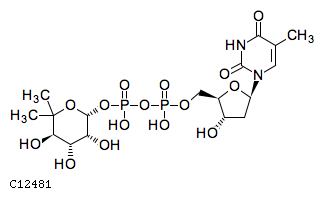

| Structure |
|
|---|
| Reaction |
|
|---|
| Pathway |
| map00523 | Polyketide sugar unit biosynthesis |
| map01110 | Biosynthesis of secondary metabolites |
| map01250 | Biosynthesis of nucleotide sugars |
|
|---|
| Module |
| M00795 | dTDP-beta-L-noviose biosynthesis |
|
|---|
| Enzyme |
|
|---|
| Other DBs |
|
|---|
| LinkDB |
|
|---|
| KCF data |
ATOM 36
1 N4y N 33.8765 -20.2788
2 C8y C 32.6904 -19.5710
3 C8x C 35.0801 -19.5710
4 N4x N 32.6904 -18.1862
5 O5x O 31.5044 -20.2554
6 C8y C 35.0801 -18.1862
7 C8y C 33.8765 -17.4972
8 C1a C 36.2614 -17.4972
9 O5x O 33.8765 -16.1357
10 C1y C 33.3090 -21.8672
11 O2x O 32.2172 -21.0705
12 C1x C 32.8957 -23.2461
13 C1y C 31.0708 -21.9138
14 C1y C 31.4920 -23.2461
15 C1b C 29.7374 -21.4740
16 O1a O 30.6685 -24.3691
17 O2b O 28.6963 -22.4098
18 P1b P 27.2985 -22.4098
19 O2c O 25.9006 -22.4098
20 O1c O 27.2926 -23.8077
21 O1c O 27.2926 -21.0120
22 P1b P 24.4969 -22.4098
23 O2b O 23.0991 -22.4098
24 O1c O 24.4911 -23.8077
25 O1c O 24.4911 -21.0120
26 C1y C 21.9119 -23.0942
27 C1y C 21.9002 -24.4745
28 O2x O 20.7246 -22.4040
29 C1y C 20.7012 -25.1587
30 O1a O 23.1109 -25.1821
31 C1z C 19.5256 -23.0765
32 C1y C 19.5139 -24.4568
33 O1a O 20.6895 -26.5566
34 C1a C 18.1109 -23.0708
35 O1a O 18.2975 -25.1412
36 C1a C 18.9557 -21.7329
BOND 38
1 10 11 1
2 10 12 1
3 11 13 1
4 12 14 1
5 13 15 1 #Up
6 14 16 1 #Down
7 15 17 1
8 17 18 1
9 18 19 1
10 18 20 1
11 18 21 2
12 19 22 1
13 22 23 1
14 22 24 1
15 22 25 2
16 13 14 1
17 3 6 2
18 4 7 1
19 6 8 1
20 7 9 2
21 6 7 1
22 10 1 1 #Up
23 1 2 1
24 1 3 1
25 2 4 1
26 26 23 1 #Down
27 26 27 1
28 26 28 1
29 27 29 1
30 27 30 1 #Down
31 28 31 1
32 29 32 1
33 29 33 1 #Down
34 31 34 1
35 32 35 1 #Up
36 31 32 1
37 2 5 2
38 31 36 1
|
|---|
