KEGG   COMPOUND: C13777Help
Entry
C13777                      Compound

Name
Azimilide
Formula
C23H28ClN5O3
Exact mass
457.1881
Mol weight
457.9531

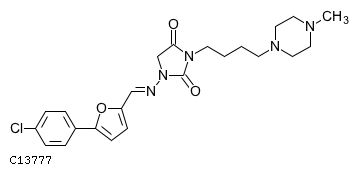

Structure
Mol fileKCF fileDB search
Pathway
map07037  Antiarrhythmic drugs
map07232  Potassium channel blocking and opening drugs
Other DBs
CAS: 149908-53-2
PubChem: 854022
ChEBI: 34545
ChEMBL: CHEMBL123558
NIKKAJI: J566.960J
LinkDB All DBs
KCF data Show

ATOM        32
            1   N1y N    17.6400  -11.3400
            2   C5x C    19.0400  -11.3400
            3   N1y N    19.4726  -10.0085
            4   C5x C    18.3400   -9.1856
            5   C1x C    17.2074  -10.0085
            6   O5x O    18.3400   -7.7700
            7   O5x O    19.8629  -12.4726
            8   N2b N    16.8171  -12.4726
            9   C2b C    15.4171  -12.4726
            10  C8y C    14.7183  -13.6828
            11  C1b C    21.8975  -10.0085
            12  C1b C    20.6851   -9.3085
            13  C1b C    24.3224  -10.0085
            14  C1b C    23.1099   -9.3085
            15  N1y N    25.5097   -9.3227
            16  C1x C    26.6945  -10.0065
            17  C1x C    27.9068   -9.3063
            18  N1y N    27.9066   -7.9063
            19  C1x C    26.7218   -7.2225
            20  C1x C    25.5094   -7.9227
            21  C1a C    29.1347   -7.1967
            22  O2x O    13.3003  -13.6788
            23  C8y C    12.8577  -15.0221
            24  C8x C    13.9985  -15.8581
            25  C8x C    15.1461  -15.0315
            26  C8y C    11.4577  -15.0221
            27  C8x C    10.7755  -13.8402
            28  C8x C     9.3755  -13.8400
            29  C8y C     8.6754  -15.0524
            30  C8x C     9.3576  -16.2343
            31  C8x C    10.7576  -16.2344
            32  X   Cl    7.2800  -15.0523
BOND        35
            1     1   2 1
            2     2   3 1
            3     3   4 1
            4     4   5 1
            5     1   5 1
            6     4   6 2
            7     2   7 2
            8     1   8 1
            9     8   9 2
            10    9  10 1
            11   11  12 1
            12    3  12 1
            13   13  14 1
            14   11  14 1
            15   13  15 1
            16   15  16 1
            17   16  17 1
            18   17  18 1
            19   18  19 1
            20   19  20 1
            21   15  20 1
            22   18  21 1
            23   10  22 1
            24   22  23 1
            25   23  24 2
            26   24  25 1
            27   10  25 2
            28   23  26 1
            29   26  27 2
            30   27  28 1
            31   28  29 2
            32   29  30 1
            33   30  31 2
            34   26  31 1
            35   29  32 1
