KEGG   COMPOUND: C17350Help
Entry
C17350                      Compound

Name
Nocardicin B
Formula
C23H24N4O9
Exact mass
500.1543
Mol weight
500.4581

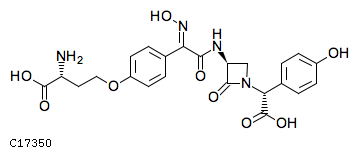

Structure
Mol fileKCF fileDB search
Other DBs
CAS: 60134-71-6
PubChem: 96023703
ChEBI: 81020
KNApSAcK: C00018106
NIKKAJI: J18.342C
LinkDB All DBs
KCF data Show

ATOM        36
            1   C1y C    30.6717  -17.8610
            2   C5x C    30.6731  -19.2554
            3   N1y N    31.9933  -19.2466
            4   C1x C    32.0547  -17.8561
            5   O5x O    29.6920  -20.2492
            6   N1b N    29.9696  -16.6451
            7   C5a C    28.7638  -17.3565
            8   C2c C    27.5472  -16.6542
            9   C8y C    26.3307  -17.3565
            10  O5a O    28.7705  -18.7612
            11  N2b N    27.5472  -15.2498
            12  C1c C    33.2258  -19.9598
            13  C8y C    34.4389  -19.2594
            14  C8x C    35.6519  -19.9598
            15  C6a C    33.2252  -21.3602
            16  O6a O    31.9955  -22.0696
            17  O6a O    34.4216  -22.0519
            18  C8x C    36.8649  -19.2594
            19  C8y C    36.8649  -17.8588
            20  C8x C    35.6519  -17.1583
            21  C8x C    34.4389  -17.8588
            22  O1a O    38.0631  -17.1668
            23  C8x C    25.1177  -16.6562
            24  C8x C    23.9046  -17.3565
            25  C8y C    23.9046  -18.7572
            26  C8x C    25.1177  -19.4577
            27  C8x C    26.3307  -18.7572
            28  O2a O    22.6759  -19.4696
            29  C1b C    21.4629  -18.7692
            30  C1b C    20.2498  -19.4696
            31  C1c C    19.0369  -18.7692
            32  C6a C    17.8238  -19.4696
            33  N1a N    19.0369  -17.3685
            34  O6a O    16.5900  -18.7569
            35  O6a O    17.8237  -20.8699
            36  O1b O    26.3638  -14.5666
BOND        38
            1     1   2 1
            2     2   3 1
            3     3   4 1
            4     1   4 1
            5     2   5 2
            6     1   6 1 #Up
            7     6   7 1
            8     7   8 1
            9     8   9 1
            10    7  10 2
            11    8  11 2
            12    3  12 1
            13   12  13 1
            14   13  14 1
            15   12  15 1 #Down
            16   15  16 2
            17   15  17 1
            18   14  18 2
            19   18  19 1
            20   19  20 2
            21   20  21 1
            22   13  21 2
            23   19  22 1
            24    9  23 2
            25   23  24 1
            26   24  25 2
            27   25  26 1
            28   26  27 2
            29    9  27 1
            30   25  28 1
            31   28  29 1
            32   29  30 1
            33   30  31 1
            34   31  32 1
            35   31  33 1 #Down
            36   32  34 1
            37   32  35 2
            38   11  36 1
