KEGG   COMPOUND: C18035Help
Entry
C18035                      Compound

Name
dTDP-3-methyl-4-oxo-2,6-dideoxy-D-glucose;
dTDP-(2,6-dideoxy-3-C-methyl-alpha-D-threo-hexopyranos-4-ulos-1-yl) ester
Formula
C17H26N2O14P2
Exact mass
544.0859
Mol weight
544.3409

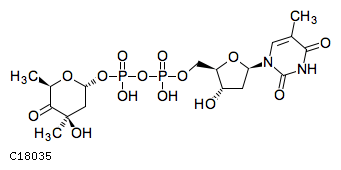

Structure
Mol fileKCF fileDB search
Reaction
Pathway
map00523  Polyketide sugar unit biosynthesis
map01100  Metabolic pathways
map01130  Biosynthesis of antibiotics
Module
M00798  dTDP-L-mycarose biosynthesis
Enzyme
2.1.1.-         5.1.3.-
Other DBs
PubChem: 96024255
ChEBI: 81464
LinkDB All DBs
KCF data Show

ATOM        35
            1   C1y C    38.2900  -25.1300
            2   N4y N    39.6900  -24.7100
            3   O2x O    37.2400  -24.3600
            4   C1x C    37.8700  -26.5300
            5   C8y C    40.7400  -25.6200
            6   C8x C    39.9700  -23.3100
            7   C1y C    36.0500  -25.2000
            8   C1y C    36.4700  -26.5300
            9   N4x N    42.0700  -25.2000
            10  O5x O    40.4600  -27.0200
            11  C8y C    41.3000  -22.8900
            12  C1b C    34.7200  -24.7800
            13  O1a O    35.6300  -27.6500
            14  C8y C    42.3500  -23.8000
            15  O2b O    33.6700  -25.6900
            16  O5x O    43.6800  -23.3800
            17  P1b P    32.2700  -25.6900
            18  O2c O    30.8700  -25.6900
            19  O1c O    32.2700  -27.0900
            20  O1c O    32.2700  -24.2900
            21  P1b P    29.4700  -25.6900
            22  O2b O    28.0700  -25.6900
            23  O1c O    29.4700  -27.0900
            24  O1c O    29.4700  -24.2900
            25  C1a C    41.5800  -21.4900
            26  C1y C    24.4300  -26.3900
            27  C5x C    24.4300  -27.7900
            28  C1z C    25.6200  -28.4900
            29  C1x C    26.8800  -27.7900
            30  C1y C    26.8800  -26.3900
            31  O2x O    25.6200  -25.6900
            32  O1a O    26.2500  -29.6800
            33  C1a C    24.9200  -29.6800
            34  O5x O    23.2400  -28.4900
            35  C1a C    23.2400  -25.6900
BOND        37
            1     1   4 1
            2     2   5 1
            3     2   6 1
            4     3   7 1
            5     4   8 1
            6     5   9 1
            7     5  10 2
            8     6  11 2
            9     7  12 1 #Up
            10    8  13 1 #Down
            11    9  14 1
            12   11  25 1
            13   12  15 1
            14   14  16 2
            15   15  17 1
            16   17  18 1
            17   17  19 1
            18   17  20 2
            19   18  21 1
            20   21  22 1
            21   21  23 1
            22   21  24 2
            23    7   8 1
            24   11  14 1
            25    1   2 1 #Up
            26    1   3 1
            27   26  27 1
            28   27  28 1
            29   28  29 1
            30   29  30 1
            31   30  31 1
            32   26  31 1
            33   28  32 1 #Up
            34   28  33 1 #Down
            35   27  34 2
            36   26  35 1 #Up
            37   30  22 1 #Down
