COMPOUND: C20419
Help
Entry
C20419 Compound
Name
CMP-N,N'-diacetyllegionaminate;
CMP-Leg5Ac7Ac
Formula
C22H34N5O15P
Exact mass
639.1789
Mol weight
639.50

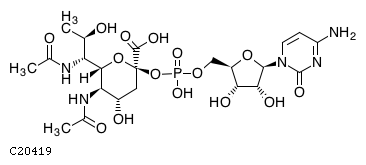

Structure
Mol file
KCF file
DB search
Reaction
R10182
Pathway
map00520
Amino sugar and nucleotide sugar metabolism
map01100
Metabolic pathways
map01250
Biosynthesis of nucleotide sugars
Enzyme
2.7.7.82
Other DBs
PubChem:
163312156
LinkDB
All DBs
KCF data
Show
ATOM 43
1 C1y C 26.7501 -30.6661
2 C1y C 27.1704 -31.9970
3 C1y C 28.5714 -31.9970
4 C1y C 28.9916 -30.6661
5 O2x O 27.8709 -29.8254
6 C1b C 25.4192 -30.1758
7 N4y N 30.3225 -30.3158
8 C8y C 31.5134 -31.0163
9 C8x C 30.3225 -28.9148
10 N5x N 32.7743 -30.3158
11 O5x O 31.5134 -32.4173
12 C8x C 31.5134 -28.2144
13 C8y C 32.7743 -28.9148
14 N1a N 33.9650 -28.2144
15 O1a O 29.3995 -33.1269
16 O1a O 26.3422 -33.1269
17 O2b O 24.3424 -31.0721
18 P1b P 22.9415 -31.0721
19 O1c O 22.9415 -29.6711
20 O1c O 22.9415 -32.4730
21 C1y C 17.6401 -30.7567
22 C1y C 17.6401 -32.1619
23 O2x O 18.8587 -30.0629
24 C1c C 16.4215 -30.0629
25 C1y C 18.8587 -32.8673
26 N1b N 16.4215 -32.8673
27 C1z C 20.0655 -30.7567
28 C1c C 16.4273 -28.6576
29 N1b N 15.2086 -30.7567
30 C1x C 20.0655 -32.1619
31 O1a O 18.8587 -34.2665
32 C5a C 16.4273 -34.2606
33 O2b O 21.4122 -31.1181
34 C1a C 15.2086 -27.9522
35 O1a O 17.6401 -27.9522
36 C1a C 15.2203 -34.9603
37 O5a O 17.6341 -34.9546
38 C5a C 13.9787 -30.0401
39 C1a C 12.7814 -30.7253
40 O5a O 13.9841 -28.6371
41 C6a C 20.0655 -29.3554
42 O6a O 21.3115 -28.6360
43 O6a O 19.2915 -28.4552
BOND 45
1 1 2 1
2 2 3 1
3 3 4 1
4 4 5 1
5 1 5 1
6 1 6 1 #Up
7 7 8 1
8 7 9 1
9 8 10 1
10 8 11 2
11 9 12 2
12 10 13 2
13 13 14 1
14 12 13 1
15 4 7 1 #Up
16 3 15 1 #Down
17 2 16 1 #Down
18 6 17 1
19 17 18 1
20 18 19 2
21 18 20 1
22 21 22 1
23 21 23 1
24 21 24 1
25 22 25 1
26 22 26 1 #Up
27 23 27 1
28 24 28 1
29 24 29 1 #Down
30 25 30 1
31 25 31 1 #Down
32 26 32 1
33 27 33 1 #Up
34 28 34 1
35 28 35 1 #Up
36 32 36 1
37 32 37 2
38 27 30 1
39 29 38 1
40 38 39 1
41 38 40 2
42 18 33 1
43 27 41 1 #Down
44 41 42 1
45 41 43 2
