KEGG   COMPOUND: C21137
Entry
C21137                      Compound
Name
dTDP-3-amino-4-oxo-2,3,6-trideoxy-L-allose;
dTDP-3-amino-4-keto-2,3,6-trideoxy-L-allose
Formula
C16H25N3O13P2
Exact mass
529.0863
Mol weight
529.33

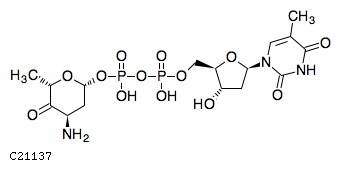

Structure
Reaction
R11138 R11139
Pathway
map00404  Staurosporine biosynthesis
map01110  Biosynthesis of secondary metabolites
map01250  Biosynthesis of nucleotide sugars
Other DBs
PubChem: 313046617
ChEBI: 192478
LinkDB
KCF data

ATOM        34
            1   C1y C    23.4652  -15.6665
            2   N4y N    24.7881  -15.2488
            3   O2x O    22.3511  -14.9006
            4   C1x C    23.0474  -17.0591
            5   C8y C    25.8325  -16.1539
            6   C8x C    25.0666  -13.8562
            7   C1y C    21.2371  -15.6665
            8   C1y C    21.6548  -17.0591
            9   N4x N    27.2250  -15.8058
            10  O5x O    25.5540  -17.5465
            11  C8y C    26.4591  -13.4384
            12  C1b C    19.8445  -15.2488
            13  O1a O    20.8193  -18.1731
            14  C8y C    27.5035  -14.3436
            15  C1a C    26.6680  -12.0459
            16  O2b O    18.8001  -16.2235
            17  O5x O    28.8961  -13.9258
            18  P1b P    17.4076  -16.2235
            19  O2c O    16.0150  -16.2235
            20  O1c O    17.4076  -17.6161
            21  O1c O    17.4076  -14.8310
            22  P1b P    14.6225  -16.2235
            23  O2b O    13.2299  -16.2235
            24  O1c O    14.6225  -17.6161
            25  O1c O    14.6225  -14.8310
            26  C1y C    12.0463  -16.8502
            27  C1x C    12.0463  -18.2427
            28  O2x O    10.8626  -16.2235
            29  C1y C    10.8626  -18.9390
            30  C1y C     9.6789  -16.8502
            31  C5x C     9.6789  -18.2427
            32  C1a C     8.4953  -16.1539
            33  O5x O     8.4257  -18.9390
            34  N1a N    10.8626  -20.3316
BOND        36
            1     1   3 1
            2     1   4 1
            3     2   5 1
            4     2   6 1
            5     3   7 1
            6     4   8 1
            7     5   9 1
            8     5  10 2
            9     6  11 2
            10    7  12 1 #Up
            11    8  13 1 #Down
            12    9  14 1
            13   11  15 1
            14   12  16 1
            15   14  17 2
            16   16  18 1
            17   18  19 1
            18   18  20 1
            19   18  21 2
            20   19  22 1
            21   22  23 1
            22   22  24 1
            23   22  25 2
            24   26  23 1 #Down
            25   26  27 1
            26   26  28 1
            27   27  29 1
            28   28  30 1
            29   29  31 1
            30   30  32 1 #Down
            31   31  33 2
            32    7   8 1
            33   11  14 1
            34   30  31 1
            35    1   2 1 #Up
            36   29  34 1 #Up
