KEGG   COMPOUND: C21351
Entry
C21351                      Compound
Name
dTDP-4-oxo-alpha-D-xylose;
dTDP-4-keto-alpha-D-xylose;
dTDP-4-dehydro-alpha-D-xylose
Formula
C15H22N2O15P2
Exact mass
532.0495
Mol weight
532.29

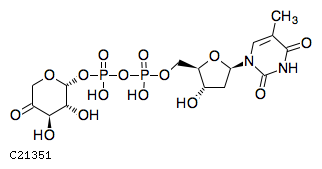

Structure
Reaction
R11466 R11472 R11473
Pathway
map00523  Polyketide sugar unit biosynthesis
map01110  Biosynthesis of secondary metabolites
Enzyme
1.1.1.-         2.1.1.-         4.2.1.-
Other DBs
PubChem: 319902590
LinkDB
KCF data

ATOM        34
            1   C1y C    23.4950  -15.3105
            2   N4y N    24.8380  -14.8707
            3   O2x O    22.3985  -14.5070
            4   C1x C    23.0787  -16.6886
            5   C8y C    25.8936  -15.8090
            6   C8x C    25.1313  -13.4923
            7   C1y C    21.2488  -15.3457
            8   C1y C    21.6712  -16.6886
            9   N4x N    27.2424  -15.3631
            10  O5x O    25.6181  -17.1813
            11  C8y C    26.4624  -13.0467
            12  C1b C    19.9117  -14.9117
            13  O1a O    20.8383  -17.8146
            14  C8y C    27.5299  -13.9851
            15  C1a C    26.7382  -11.6684
            16  O2b O    18.8679  -15.8499
            17  O5x O    28.8670  -13.5452
            18  P1b P    17.4662  -15.8499
            19  O2c O    16.0645  -15.8499
            20  O1c O    17.4603  -17.2517
            21  O1c O    17.4603  -14.4484
            22  P1b P    14.6570  -15.8499
            23  O2b O    13.2555  -15.8499
            24  O1c O    14.6512  -17.2517
            25  O1c O    14.6512  -14.4484
            26  C1y C    12.0649  -16.5361
            27  C1y C    12.0531  -17.9203
            28  O2x O    10.8744  -15.8441
            29  C1y C    10.8509  -18.6063
            30  C1x C     9.6721  -16.5185
            31  C5x C     9.6603  -17.9026
            32  O1a O    10.8392  -20.0080
            33  O5x O     8.4353  -18.5945
            34  O1a O    13.2547  -18.6249
BOND        36
            1     1   2 1 #Up
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 1
            6     3   7 1
            7     4   8 1
            8     5   9 1
            9     5  10 2
            10    6  11 2
            11    7  12 1 #Up
            12    8  13 1 #Down
            13    9  14 1
            14   11  15 1
            15   12  16 1
            16   14  17 2
            17   16  18 1
            18   18  19 1
            19   18  20 1
            20   18  21 2
            21   19  22 1
            22   22  23 1
            23   22  24 1
            24   22  25 2
            25   26  23 1 #Down
            26   26  27 1
            27   26  28 1
            28   27  29 1
            29   28  30 1
            30   29  31 1
            31   29  32 1 #Up
            32    7   8 1
            33   11  14 1
            34   30  31 1
            35   31  33 2
            36   27  34 1 #Down
