KEGG   GLYCAN: G02666
Entry
G02666                      Glycan
Composition
(Gal)4 (GlcNAc)6 (LFuc)1 (Man)3 (Neu5Ac)3
Mass
3392.1

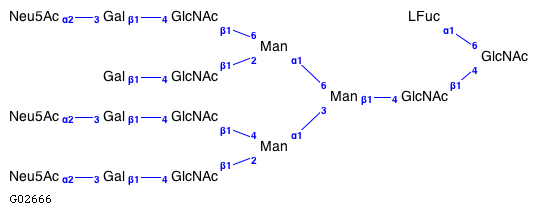

Structure
Reference
1  [PMID:2503511]
  Authors
Spellman MW, Basa LJ, Leonard CK, Chakel JA, O'Connor JV, Wilson S, van Halbeek H.
  Title
Carbohydrate structures of human tissue plasminogen activator expressed in Chinese hamster ovary cells.
  Journal
J Biol Chem 264:14100-11 (1989)
Other DBs
CCSD:
GlyTouCan: G88734GE
JCGGDB: JCGG-STR009651
LinkDB
KCF data

NODE        17
            1   GlcNAc     23     4
            2   LFuc       15     8
            3   GlcNAc     15     0
            4   Man         7     0
            5   Man         0     5
            6   Man         0    -5
            7   GlcNAc     -8     8
            8   GlcNAc     -8     2
            9   GlcNAc     -8    -2
            10  GlcNAc     -8    -8
            11  Gal       -16     8
            12  Gal       -16     2
            13  Gal       -16    -2
            14  Gal       -16    -8
            15  Neu5Ac    -24     8
            16  Neu5Ac    -24    -2
            17  Neu5Ac    -24    -8
EDGE        16
            1     2:a1    1:6
            2     3:b1    1:4
            3     4:b1    3:4
            4     5:a1    4:6
            5     6:a1    4:3
            6     7:b1    5:6
            7     8:b1    5:2
            8     9:b1    6:4
            9    10:b1    6:2
            10   11:b1    7:4
            11   12:b1    8:4
            12   13:b1    9:4
            13   14:b1   10:4
            14   15:a2   11:3
            15   16:a2   13:3
            16   17:a2   14:3
