KEGG   GLYCAN: G12597
Entry
G12597                      Glycan
Composition
(Galf)2 (GlcA)2 (*)2

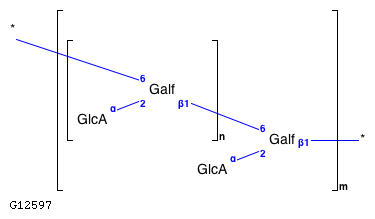

Structure
Reference
1  [PMID:9345753]
  Authors
Ahrazem O, Prieto A, Leal JA, Gomez-Miranda B, Domenech J, Jimenez-Barbero J, Bernabe M.
  Title
Structural elucidation of acidic fungal polysaccharides isolated from the cell-wall of genera Cylindrocladium and Calonectria.
  Journal
Carbohydr Res 303:67-72 (1997)
DOI:10.1016/S0008-6215(97)00145-6
LinkDB
KCF data

NODE        6
            1   *          17    -4
            2   Galf        9    -4
            3   GlcA        2    -7
            4   Galf       -3     1
            5   GlcA      -10    -2
            6   *         -18     7
EDGE        5
            1     2:b1    1
            2     3:a     2:2
            3     4:b1    2:6
            4     5:a     4:2
            5     6       4:6
BRACKET     1 -12.0   6.0 -12.0  -4.0
            1   2.0  -4.0   2.0   6.0
            1 n
            2 -13.0   9.0 -13.0  -9.0
            2  14.0  -9.0  14.0   9.0
            2 m
