KEGG   GLYCAN: G13098
Entry
G13098                      Glycan
Composition
(GalNAc)1 (GlcA)2 (GlcNAc)1 (Man)1 (Rib-ol)2 (Xyl)2 (P)3 (Ser/Thr)1
Mass
1693.2 (Ser/Thr)

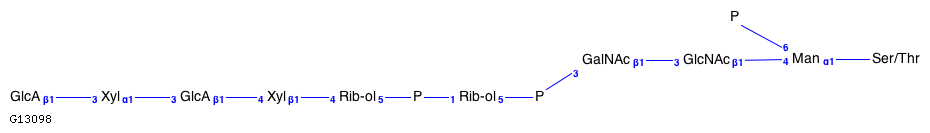

Structure
Reaction
Pathway
map00515  Mannose type O-glycan biosynthesis
map01100  Metabolic pathways
Module
M00872  O-glycan biosynthesis, mannose type (core M3)
Enzyme
2.4.1.-
LinkDB
KCF data

NODE        13
            1   Ser/Thr  43.4   0.1
            2   Man      34.4   0.1
            3   P        27.2   4.3
            4   GlcNAc   24.4     0
            5   GalNAc   14.4     0
            6   P         7.7  -3.7
            7   Rib-ol    1.5  -3.7
            8   P        -4.5  -3.7
            9   Rib-ol  -10.5  -3.7
            10  Xyl     -18.6  -3.7
            11  GlcA    -26.7  -3.7
            12  Xyl     -35.2  -3.7
            13  GlcA    -43.7  -3.7
EDGE        12
            1     2:a1    1
            2     3       2:6
            3     4:b1    2:4
            4     5:b1    4:3
            5     6       5:3
            6     7:5     6
            7     8       7:1
            8     9:5     8
            9    10:b1    9:4
            10   11:b1   10:4
            11   12:a1   11:3
            12   13:b1   12:3
