KEGG   COMPOUND: C00688
Entry
C00688                      Compound
Name
dTDP-4-dehydro-beta-L-rhamnose;
dTDP-4-dehydro-6-deoxy-beta-L-mannose;
dTDP-4-oxo-6-deoxy-L-mannose;
dTDP-4-oxo-L-rhamnose
Formula
C16H24N2O15P2
Exact mass
546.0652
Mol weight
546.31

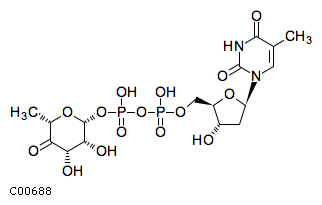

Structure
Reaction
Pathway
map00521  Streptomycin biosynthesis
map00523  Polyketide sugar unit biosynthesis
map00541  O-Antigen nucleotide sugar biosynthesis
map01100  Metabolic pathways
map01110  Biosynthesis of secondary metabolites
map01250  Biosynthesis of nucleotide sugars
Module
M00793  dTDP-L-rhamnose biosynthesis
Enzyme
1.1.1.133       1.1.1.134       1.1.1.339       1.1.1.344
5.1.3.13
Other DBs
PubChem: 3957
ChEBI: 15744 45868
PDB-CCD: TDO[PDBj]
NIKKAJI: J1.118.397B
LinkDB
KCF data

ATOM        35
            1   C1y C    28.0218  -17.0192
            2   N4y N    28.7432  -14.9752
            3   O2x O    26.8954  -16.2156
            4   C1x C    27.5915  -18.3355
            5   C8y C    27.5535  -14.2665
            6   C8x C    29.9518  -14.2665
            7   C1y C    25.7944  -17.0192
            8   C1y C    26.2120  -18.3355
            9   N4x N    27.5535  -12.8744
            10  O5x O    26.3576  -14.9499
            11  C8y C    29.9518  -12.8744
            12  C1b C    24.4844  -16.5889
            13  O1a O    25.3956  -19.4493
            14  C8y C    28.7495  -12.1910
            15  C1a C    31.1478  -12.1846
            16  O2b O    23.4593  -17.5064
            17  O5x O    28.7432  -10.8115
            18  P1b P    22.0797  -17.5002
            19  O2c O    20.7066  -17.5002
            20  O1c O    22.0797  -16.1270
            21  O1c O    22.0797  -18.8797
            22  P1b P    19.3270  -17.5002
            23  O2b O    17.9538  -17.5064
            24  O1c O    19.3270  -16.1270
            25  O1c O    19.3270  -18.8797
            26  C1y C    16.7578  -18.1900
            27  C1y C    16.7578  -19.5631
            28  O2x O    15.5556  -17.5064
            29  C1y C    15.5556  -20.2529
            30  O1a O    17.9538  -20.2529
            31  C1y C    14.3659  -18.1900
            32  C5x C    14.3659  -19.5631
            33  O1a O    15.5683  -21.6324
            34  C1a C    13.1889  -17.5064
            35  O5x O    13.1889  -20.2529
BOND        37
            1     1   2 1 #Up
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 1
            6     3   7 1
            7     4   8 1
            8     5   9 1
            9     5  10 2
            10    6  11 2
            11    7  12 1 #Up
            12    8  13 1 #Down
            13    9  14 1
            14   11  15 1
            15   12  16 1
            16   14  17 2
            17   16  18 1
            18   18  19 1
            19   18  20 1
            20   18  21 2
            21   19  22 1
            22   22  23 1
            23   22  24 1
            24   22  25 2
            25   26  23 1 #Down
            26   26  27 1
            27   26  28 1
            28   27  29 1
            29   27  30 1 #Down
            30   28  31 1
            31   29  32 1
            32   29  33 1 #Down
            33   31  34 1 #Down
            34   32  35 2
            35    7   8 1
            36   11  14 1
            37   31  32 1
