KEGG   COMPOUND: C11933Help
Entry
C11933                      Compound

Name
dTDP-D-mycaminose;
dTDP-alpha-D-mycaminose
Formula
C18H31N3O14P2
Exact mass
575.1281
Mol weight
575.398

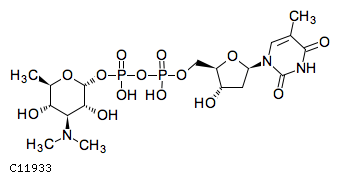

Structure
Mol fileKCF fileDB search
Reaction
Pathway
map00522  Biosynthesis of 12-, 14- and 16-membered macrolides
map00523  Polyketide sugar unit biosynthesis
map01100  Metabolic pathways
map01130  Biosynthesis of antibiotics
Module
M00796  dTDP-D-mycaminose biosynthesis
Enzyme
2.1.1.235       2.4.1.316
Other DBs
PubChem: 14094
ChEBI: 29728
PDB-CCD: QDM[PDBj]
3DMET: B05576
NIKKAJI: J2.648.613K
LinkDB All DBs
KCF data Show

ATOM        37
            1   C1y C    32.0253  -20.4767
            2   N4y N    33.3676  -20.0323
            3   O2x O    30.9280  -19.6779
            4   C1x C    31.6114  -21.8540
            5   C8y C    34.4243  -20.9723
            6   C8x C    33.6593  -18.6550
            7   C1y C    29.7851  -20.5188
            8   C1y C    30.2050  -21.8540
            9   N4x N    35.7724  -20.5362
            10  O5x O    34.1504  -22.3508
            11  C8y C    34.9900  -18.2189
            12  C1b C    28.4486  -20.0802
            13  O1a O    29.3769  -22.9876
            14  C8y C    36.0581  -19.1589
            15  C1a C    35.2710  -16.8416
            16  O2b O    27.4035  -21.0131
            17  O5x O    37.3947  -18.7145
            18  P1b P    26.0100  -21.0131
            19  O2c O    24.6023  -21.0131
            20  O1c O    25.9971  -22.4208
            21  O1c O    25.9971  -19.6124
            22  P1b P    23.1957  -21.0131
            23  O2b O    21.8022  -21.0131
            24  O1c O    23.1970  -22.4208
            25  O1c O    23.1970  -19.6124
            26  C1y C    20.6044  -21.7025
            27  C1y C    20.5928  -23.0927
            28  O2x O    19.4136  -21.0144
            29  C1y C    19.3903  -23.7677
            30  O1a O    21.8069  -23.7981
            31  C1y C    18.2183  -21.6918
            32  C1y C    18.2066  -23.0680
            33  N1c N    19.3857  -25.1756
            34  C1a C    17.0334  -21.0028
            35  O1a O    16.9798  -23.7574
            36  C1a C    18.1588  -25.8623
            37  C1a C    20.5939  -25.8824
BOND        39
            1     1   3 1
            2     1   4 1
            3     2   5 1
            4     2   6 1
            5     3   7 1
            6     4   8 1
            7     5   9 1
            8     5  10 2
            9     6  11 2
            10    7  12 1 #Up
            11    8  13 1 #Down
            12    9  14 1
            13   11  15 1
            14   12  16 1
            15   14  17 2
            16   16  18 1
            17   18  19 1
            18   18  20 1
            19   18  21 2
            20   19  22 1
            21   22  23 1
            22   22  24 1
            23   22  25 2
            24   26  23 1 #Down
            25   26  27 1
            26   26  28 1
            27   27  29 1
            28   27  30 1 #Down
            29   28  31 1
            30   29  32 1
            31   29  33 1 #Up
            32   31  34 1 #Up
            33   32  35 1 #Down
            34    7   8 1
            35   11  14 1
            36   31  32 1
            37   33  36 1
            38    1   2 1 #Up
            39   33  37 1
