KEGG   COMPOUND: C16238
Entry
C16238                      Compound
Name
Lipoyl-AMP
Formula
C18H26N5O8PS2
Exact mass
535.0960
Mol weight
535.54

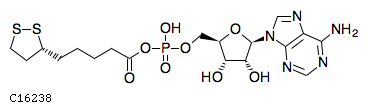

Structure
Reaction
Pathway
map00785  Lipoic acid metabolism
map01100  Metabolic pathways
Enzyme
Other DBs
PubChem: 47205546
ChEBI: 55451
PDB-CCD: LAQ[PDBj]
NIKKAJI: J2.799.182C
LinkDB
KCF data

ATOM        34
            1   S3x S     9.0460  -14.9238
            2   S3x S     7.6449  -14.9238
            3   C1x C     7.2245  -16.2548
            4   C1x C     8.3454  -17.0955
            5   C1y C     9.4663  -16.2548
            6   C1b C    10.6573  -16.9554
            7   C1b C    11.9183  -16.2548
            8   C1b C    13.1092  -16.9554
            9   C1b C    14.3002  -16.2548
            10  C7a C    15.5612  -16.9554
            11  O6a O    15.5612  -18.3565
            12  N4y N    25.4391  -15.4142
            13  C8y C    26.4899  -16.1147
            14  C1y C    24.1080  -15.8345
            15  C8x C    25.9295  -14.0130
            16  C8y C    27.7509  -15.2040
            17  N5x N    26.6300  -17.5859
            18  O2x O    22.9871  -14.9238
            19  C1y C    23.6877  -17.0955
            20  N5x N    27.3306  -14.0130
            21  C8y C    29.0119  -15.7644
            22  C8x C    27.9611  -18.1463
            23  C1y C    21.8662  -15.7644
            24  C1y C    22.2866  -17.0955
            25  N5x N    29.1521  -17.2356
            26  N1a N    30.0628  -14.9238
            27  C1b C    20.5352  -15.3441
            28  O2b O    19.4843  -16.2548
            29  P1b P    18.0832  -16.2548
            30  O1c O    18.0832  -17.6559
            31  O1c O    18.0832  -14.8537
            32  O7a O    16.6821  -16.2548
            33  O1a O    21.6685  -18.2957
            34  O1a O    24.2968  -18.3022
BOND        37
            1     1   2 1
            2     2   3 1
            3     3   4 1
            4     4   5 1
            5     1   5 1
            6     5   6 1 #Down
            7     6   7 1
            8     7   8 1
            9     8   9 1
            10    9  10 1
            11   10  11 2
            12   12  13 1
            13   14  12 1 #Up
            14   12  15 1
            15   13  16 2
            16   13  17 1
            17   14  18 1
            18   14  19 1
            19   15  20 2
            20   16  21 1
            21   17  22 2
            22   18  23 1
            23   19  24 1
            24   21  25 2
            25   21  26 1
            26   23  27 1 #Up
            27   27  28 1
            28   28  29 1
            29   29  30 2
            30   29  31 1
            31   16  20 1
            32   22  25 1
            33   23  24 1
            34   29  32 1
            35   10  32 1
            36   24  33 1 #Down
            37   19  34 1 #Down
