KEGG   COMPOUND: C22297
Entry
C22297                      Compound

Name
Enolpyruvoyl-2-diphospho-5'-guanosine
Formula
C13H17N5O13P2
Exact mass
513.0298
Mol weight
513.2473

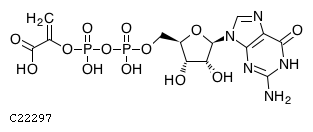

Structure
Reaction
Pathway
map00680  Methane metabolism
map01100  Metabolic pathways
map01120  Microbial metabolism in diverse environments
Enzyme
2.7.7.105       2.7.8.28
LinkDB
KCF data

ATOM        33
            1   N4y N    23.7860  -14.8049
            2   C8y C    24.9077  -15.5059
            3   C1y C    22.5242  -15.2255
            4   C8x C    24.2768  -13.4028
            5   C8y C    26.0995  -14.5945
            6   N5x N    25.0479  -16.9781
            7   O2x O    21.4025  -14.3842
            8   C1y C    22.1035  -16.4874
            9   N5x N    25.7490  -13.4028
            10  C8y C    27.3614  -15.1554
            11  C8y C    26.3799  -17.5389
            12  C1y C    20.2808  -15.1554
            13  C1y C    20.7015  -16.4874
            14  O1a O    22.8747  -17.6090
            15  N4x N    27.5717  -16.6977
            16  O5x O    28.4830  -14.3842
            17  N1a N    26.5201  -18.9410
            18  C1b C    18.9488  -14.7348
            19  O1a O    20.2808  -17.8193
            20  O2b O    17.8973  -15.6461
            21  P1b P    16.4952  -15.6461
            22  O2c O    15.0931  -15.6461
            23  O1c O    16.4952  -17.0482
            24  O1c O    16.4952  -14.2440
            25  P1b P    13.7611  -15.6461
            26  O1c O    13.7611  -17.0482
            27  O1c O    13.7611  -14.2440
            28  O2b O    12.3590  -15.6461
            29  C2c C    11.1448  -14.9451
            30  C6a C     9.9475  -15.6365
            31  C2a C    11.1447  -13.5432
            32  O6a O     8.7584  -14.9500
            33  O6a O     9.9474  -17.0479
BOND        35
            1     1   2 1
            2     3   1 1 #Up
            3     1   4 1
            4     2   5 2
            5     2   6 1
            6     3   7 1
            7     3   8 1
            8     4   9 2
            9     5  10 1
            10    6  11 2
            11    7  12 1
            12    8  13 1
            13    8  14 1 #Down
            14   10  15 1
            15   10  16 2
            16   11  17 1
            17   12  18 1 #Up
            18   13  19 1 #Down
            19   18  20 1
            20   20  21 1
            21   21  22 1
            22   21  23 1
            23   21  24 2
            24   22  25 1
            25   25  26 1
            26   25  27 2
            27    5   9 1
            28   11  15 1
            29   12  13 1
            30   25  28 1
            31   28  29 1
            32   29  30 1
            33   29  31 2
            34   30  32 2
            35   30  33 1
