KEGG   COMPOUND: C05921
Entry
C05921                      Compound
Name
Biotinyl-5'-AMP
Formula
C20H28N7O9PS
Exact mass
573.1407
Mol weight
573.52

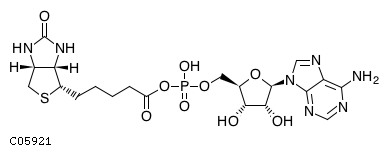

Structure
Reaction
Pathway
map00780  Biotin metabolism
map01100  Metabolic pathways
Enzyme
6.2.1.11        6.3.4.9         6.3.4.10        6.3.4.11
6.3.4.15
Other DBs
PubChem: 8209
ChEBI: 3110
PDB-CCD: BT5[PDBj]
NIKKAJI: J734.022B
LinkDB
KCF data

ATOM        38
            1   C1y C    22.6800  -17.2900
            2   C1y C    21.2800  -17.2900
            3   C1y C    23.1000  -18.6200
            4   N1x N    23.1000  -15.9600
            5   N1x N    20.8600  -15.9600
            6   C1x C    20.8600  -18.6200
            7   S2x S    21.9800  -19.4600
            8   C1b C    24.2900  -19.3200
            9   C5x C    21.9800  -15.1200
            10  C1b C    25.5500  -18.6200
            11  O5x O    21.9800  -13.7200
            12  C1b C    26.7400  -19.3200
            13  C1b C    27.9300  -18.6200
            14  C7a C    29.1200  -19.3200
            15  O7a O    30.3800  -18.6200
            16  O6a O    29.1200  -20.7200
            17  P1b P    31.7800  -18.6200
            18  O2b O    33.1800  -18.6200
            19  O1c O    31.7800  -20.0200
            20  O1c O    31.7800  -17.2200
            21  C1b C    34.3924  -17.9200
            22  C1y C    35.6049  -18.6200
            23  C1y C    36.0442  -19.9443
            24  C1y C    37.4442  -19.9378
            25  C1y C    37.8706  -18.6044
            26  O2x O    36.7342  -17.7867
            27  N4y N    39.1948  -18.1674
            28  O1a O    35.2267  -21.0823
            29  O1a O    38.2802  -21.0773
            30  C8y C    40.3502  -18.9982
            31  C8y C    41.4973  -18.1562
            32  N5x N    41.0510  -16.8049
            33  C8x C    39.6280  -16.8118
            34  N5x N    40.5033  -20.3898
            35  C8x C    41.7850  -20.9530
            36  N5x N    42.9322  -20.1109
            37  C8y C    42.7791  -18.7193
            38  N1a N    43.9156  -17.8853
BOND        42
            1     1   2 1
            2     1   3 1
            3     1   4 1
            4     2   5 1
            5     2   6 1
            6     3   7 1
            7     3   8 1 #Down
            8     4   9 1
            9     8  10 1
            10    9  11 2
            11   10  12 1
            12   12  13 1
            13   13  14 1
            14   14  15 1
            15   14  16 2
            16    5   9 1
            17    6   7 1
            18   15  17 1
            19   17  18 1
            20   17  19 2
            21   17  20 1
            22   18  21 1
            23   22  21 1 #Up
            24   22  23 1
            25   23  24 1
            26   24  25 1
            27   25  26 1
            28   22  26 1
            29   25  27 1 #Up
            30   23  28 1 #Down
            31   24  29 1 #Down
            32   27  30 1
            33   30  31 1
            34   31  32 1
            35   32  33 2
            36   27  33 1
            37   30  34 2
            38   34  35 1
            39   35  36 2
            40   36  37 1
            41   31  37 2
            42   37  38 1
